Series S

Series S is the smallest of the outriggers systems offered by BFBT with a power factor of 50 kNm. It features a small size with a high mechanical strength.

Suggested Usage

Smaller stationary crushers
Mobile crushers
Recycling plants


SK Solid frame with swivel bracket, boom and stick – rotation capability 170°
SKD Solid frame with swivel bracket, boom and stick and stick – rotation capability 170°
SR Swivel frame, boom and stick – rotation capability 330 °
ST Swivel frame with telescopic boom – rotation capability  330 °

Composition and operational advantages

Solid sturdy frame with the possibility of anchoring to the concrete base or to steel base
Swivel bracket and reinforced with vertical pins turning capability of  170°  - for SK
The mighty swing bearing with high-pinion - for SR and ST
The boom and stick are secured by a special strength welded steel
All fasteners (bolts, bushings) are high-strength steel with heat treatment for long life
Hydraulic distributor and its controls are from the same manufacturer - Sauer Danfoss
Hydraulic cylinders with high resistance for heavy-duty operating conditions
Hydraulic Hammer with appropriate recommended capacity and type according to the needs of the customer
Hydraulic unit with sufficient power for hydraulic hammer

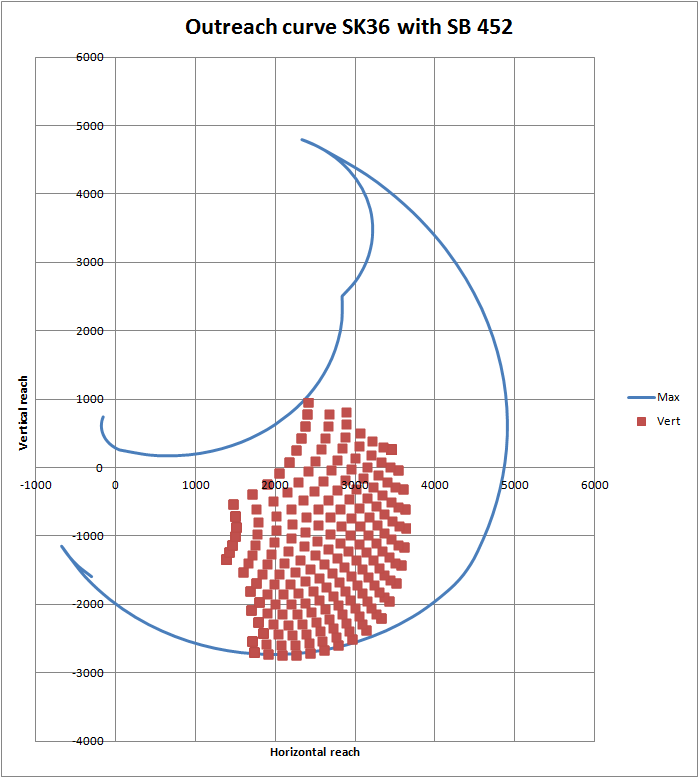

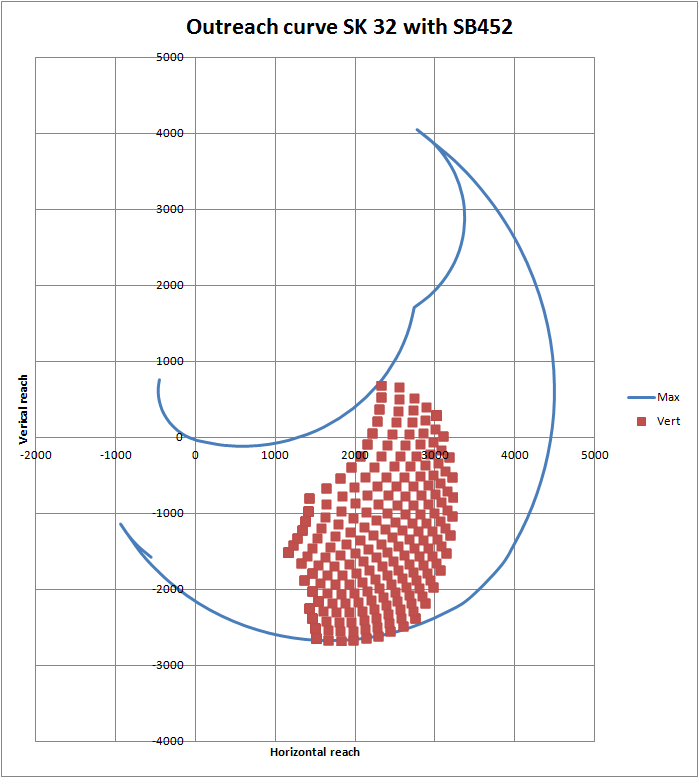

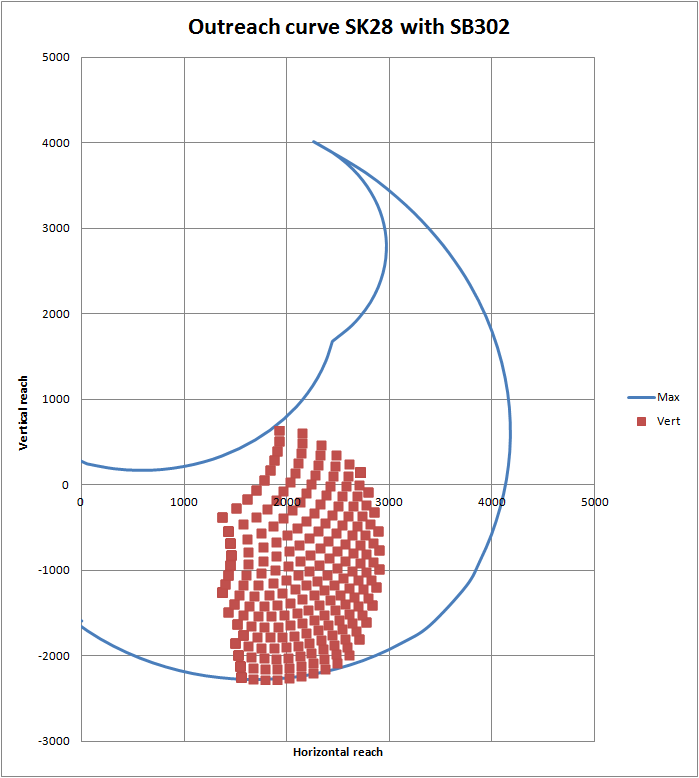

SK28 SK32 SK36

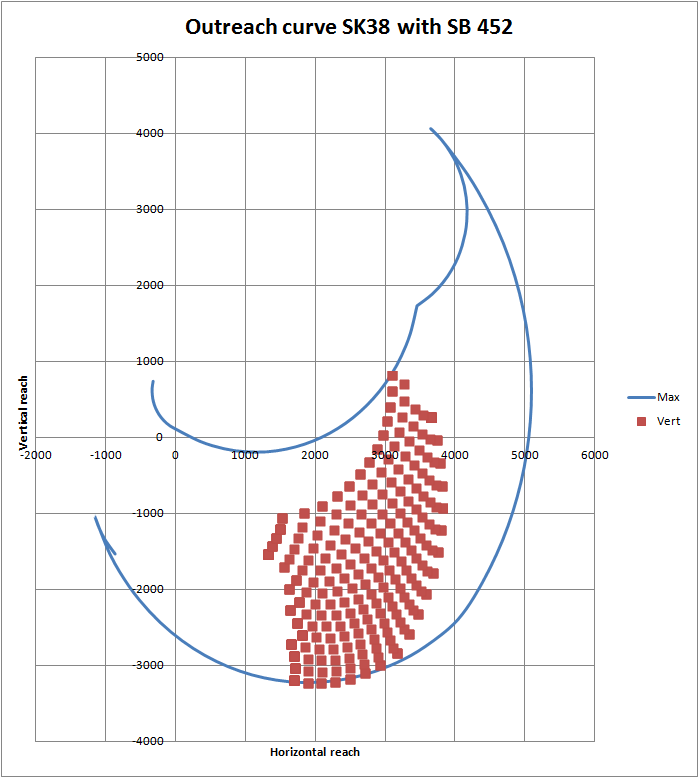

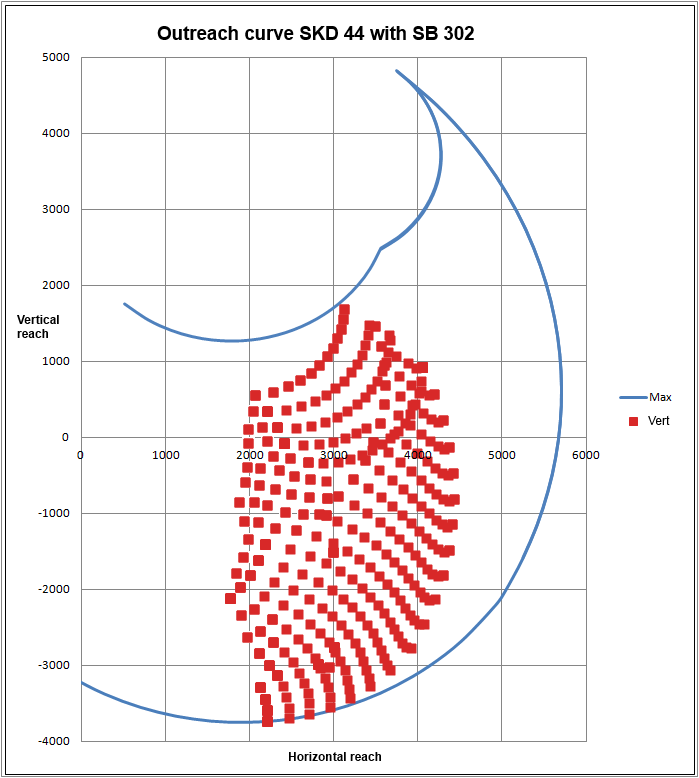

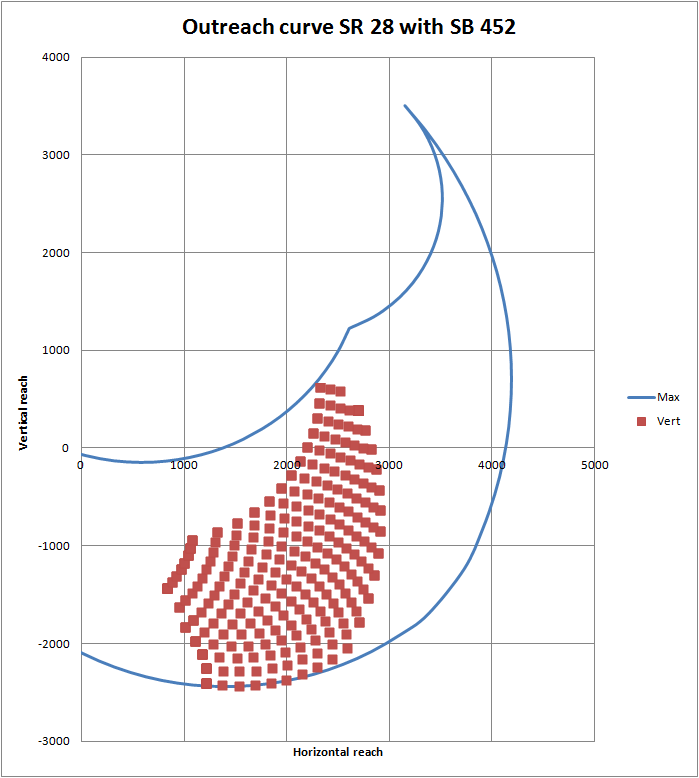

SK38 SKD44 SR28
