Series L

Series L is a light duty outrigger system from BFBT with the power factor of 80kNm. It has a smaller size with a high mechanical strength

This devise allows for the use of large hydraulic hammers.

Suggested usage

Smaller stationary crushers
Semi mobile crushers
Larger mobile crushers and recycling plants


LK Solid frame with swivel bracket, boom and stick, rotation range of 170°
LR Rotary frame, boom and stick with a rotation range of up to 330°

Composition and operational advantages

Solid sturdy frame with anchoring to concrete base or steel base.
Swivel bracket and vertical studs reinforced, with the rotation range of up to 170°
Boom and stick are special strength welded steel
All fasteners (bolts, bushings) are high-strength steel with heat treatment for long life
Hydraulic distributor and its controls are from the same manufacturer - Sauer Danfoss
Hydraulic cylinders with high resistance for heavy-duty operating conditions
Hydraulic Hammer with appropriate recommended capacity and type according to the needs of the customer

Hydraulic unit with sufficient power for hydraulic hammer

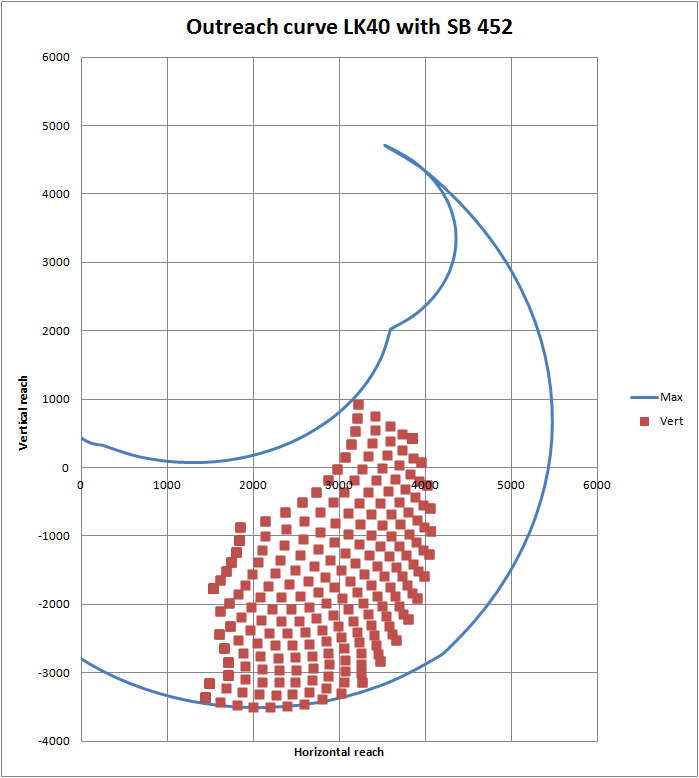

LK32 LK38 LK40

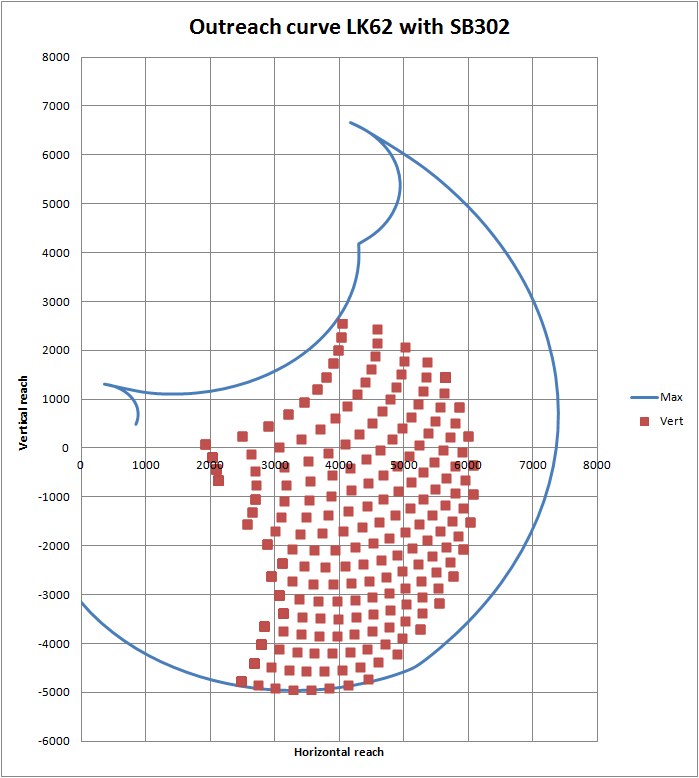

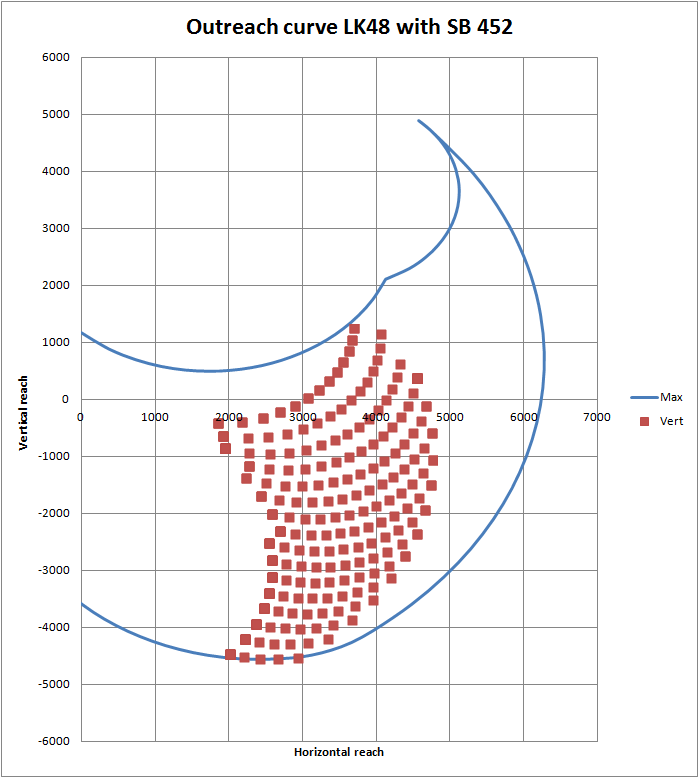

LK45 LK 48 LK 62
